What Are Articulated 3D Prints?
Articulated 3D prints — often called flexi prints, print-in-place models, or wiggle prints — represent one of the most impressive demonstrations of what 3D printing technology can achieve. These designs feature interlocking joints and moving parts that are printed as a single piece with no assembly required.
When the print finishes, you simply flex the joints to break them free from any minor adhesion points, and the figure becomes fully poseable. You can bend, twist, and arrange these prints into countless different positions. The engineering behind these designs is remarkable, with carefully calculated tolerances that allow parts to move freely while remaining securely connected.
At 3DCentral, we carry an extensive selection of articulated prints from renowned designers like Flexi Factory, one of the pioneering creators in the print-in-place space. From dragons and dinosaurs to cats, dogs, octopuses, and even mechanical robots, our articulated collection offers something for every collector.
The Engineering Behind Print-in-Place Joints
Creating print-in-place joints requires understanding both 3D printing physics and mechanical engineering principles. The magic happens in the tiny gaps between moving parts.
Tolerance Precision
Print-in-place joints rely on precise gap tolerances between interlocking components. The designer creates small clearances — typically 0.2 to 0.5 millimeters — between parts that need to move relative to each other.
During printing, these gaps are maintained through:
Gravity: When printing a ball joint horizontally, gravity keeps the ball from fusing to the socket above it while both print simultaneously.
Bridging: The printer bridges short gaps between parts without support material, leaving them connected but free to separate.
Support interface: Some joints use built-in support structures that break away easily after printing, freeing the joint for movement.
Layer timing: Parts print in sequence such that the previous layer has cooled enough to not fuse with the next layer even when they’re very close.
The tolerance must be tight enough that parts stay connected during handling, but loose enough that they move freely. Too tight, and joints fuse during printing. Too loose, and parts fall apart or feel sloppy.
Common Joint Types
Different joint designs enable different types of movement:
Ball-and-socket joints: Allow rotation in multiple axes, perfect for shoulders, hips, and spine segments. The ball sits inside a socket with just enough clearance to rotate smoothly.
Pin/hinge joints: Enable single-axis rotation like elbows, knees, and tail segments. A cylindrical pin passes through a hole, rotating around its axis.
Universal joints: Combine multiple rotation axes for complex movement, often used in necks and tails where fluid motion is desired.
Snap-fit mechanisms: Parts that clip together during the first flex, creating satisfying feedback and secure connections.
Chain links: Simple interlocking segments that can twist and flex relative to each other, perfect for tails, tentacles, and flexible bodies.
Why Printer Calibration Matters
Articulated prints are unforgiving of printer calibration issues that other designs might tolerate:
Over-extrusion (too much plastic): Even slight over-extrusion causes parts to fuse together, creating immovable joints. A joint designed with 0.3mm clearance might have zero clearance if the printer over-extrudes by 0.15mm per surface.
Under-extrusion (too little plastic): Insufficient material makes joints too loose and weak. Parts might move freely but feel sloppy or fall apart with handling.
Dimensional accuracy: If your printer produces parts slightly larger or smaller than designed, joint clearances shift accordingly. A printer that consistently prints 1% oversized will make joints too tight.
Temperature: Printing too hot makes material more fluid, causing it to sag into gaps and fuse joints. Printing too cold results in poor layer adhesion and weak joints.
This sensitivity to printer settings is why print farm quality control is especially important for articulated designs. At our Quebec facility, we calibrate printers specifically for the tolerances these designs require.
Popular Articulated Design Categories
Certain subjects translate especially well to articulated print-in-place format.

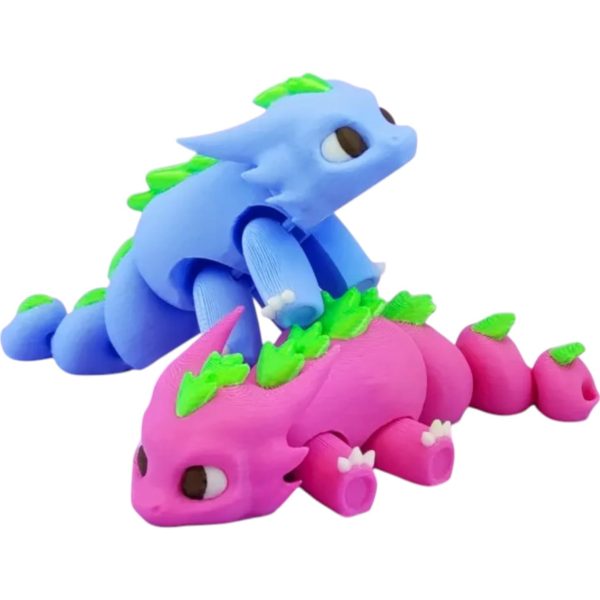

Dragons
Dragons are by far the most popular articulated design category, and it’s easy to see why. A fully flexi dragon features:
- Segmented body: Individual vertebrae with ball joints allowing natural serpentine curves
- Poseable tail: Long, flexible tail that can coil, straighten, or wrap around objects
- Articulated wings: Wings that fold against the body or spread for display
- Moveable head and neck: Head positions from aggressive forward to relaxed sideways
- Leg joints: Poseable legs for perched, standing, or coiled positions
A well-designed articulated dragon can be arranged in dozens of different configurations — coiled up like a sleeping cat, stretched out along a shelf edge, perched on a monitor, or wrapped around a coffee cup. This versatility makes dragons endlessly engaging.
The fantasy aesthetic of dragons also perfectly suits collectible display. These aren’t toys (though they’re certainly fun to fidget with) — they’re display pieces that happen to move.
Articulated Animals
Real-world animals translate beautifully to flexi prints:
Cats: Feline flexibility is perfect for articulation. A flexi cat can curl up sleeping, arch its back in a stretch, or lounge in dozens of natural positions.
Dogs: While real dogs aren’t as flexible as cats, articulated dog prints capture playful poses and sitting/standing positions.
Octopuses: Multiple independently poseable tentacles enable dramatic displays — crawling across a shelf, wrapped around objects, or spread in all directions.
Snakes: The ultimate in flexibility. A print-in-place snake can be arranged in realistic coils, S-curves, or stretched straight.
Bears, foxes, and woodland creatures: Popular subjects that combine appeal with interesting articulation.
Animals work well as articulated prints because their organic movement feels natural to articulation mechanics. The flowing curves of ball-joint chains mimic real spine and tail movement.
Mechanical and Fantasy Designs
Articulated printing also enables mechanical and fantastical subjects:
Robots: Mechanical aesthetics work perfectly with visible joint mechanisms. Articulated robots embrace the technical nature of print-in-place design.
Insects: Giant mechanical insects with poseable legs, antennae, and segmented bodies create dramatic displays.
Vehicles and machines: Chains, treads, and moving parts can all be printed in place for display pieces that actually function.
Articulated text: Letters and words that flex and twist, creating kinetic sculpture from typography.
These designs lean into the technical achievement of print-in-place rather than hiding it, celebrating what 3D printing makes possible.
Compound Designs
Some designers push boundaries by combining multiple articulation types in single prints:
- Dragons with both body articulation and separately articulated wings
- Animals with poseable bodies and print-in-place accessories
- Multi-creature prints with several articulated elements
- Hybrid creatures combining organic and mechanical elements
These complex designs showcase advanced engineering and provide incredible display versatility.
Displaying and Enjoying Articulated Prints
One of the best aspects of articulated prints is their interactive nature.
Interactive Display
Unlike static figurines that sit in fixed positions, articulated prints invite interaction:
Fidget appeal: Many people keep articulated prints on their desks as stress-relief toys and conversation starters. The satisfying movement of well-designed joints provides tactile feedback that’s genuinely relaxing.
Changing displays: You can rearrange your display whenever the mood strikes. Your dragon perched on a monitor today might coil around a plant pot tomorrow.
Photography opportunities: The ability to pose prints creates endless photography possibilities. Articulated dragons photographed in different poses feel like different pieces.
Conversation pieces: Handing someone an articulated print always generates reaction, especially from people unfamiliar with 3D printing capabilities.
Creative Display Ideas
The posability of articulated prints enables creative display approaches:
Edge perching: Dragons and animals can perch on monitor edges, shelf edges, or cup rims, appearing to climb or rest on furniture.
Wrapped displays: Flexible designs can wrap around cylindrical objects — lamp bases, plant pots, water bottles — creating dynamic 3D arrangements.
Multi-level staging: Use shelving depth by positioning parts of long designs at different levels, creating depth in displays.
Themed scenes: Combine multiple articulated prints with static pieces to create scenes where posability adds life.
Seasonal rearrangement: Change poses seasonally — alert summer poses versus coiled winter positions — keeping displays fresh.
Care Considerations
Articulated prints benefit from gentle handling:
Initial break-in: When first posing a new print, move joints gently and gradually. While designed to move, rough initial handling can damage joints before they’ve been properly broken in.
Avoid forcing: If a joint resists movement, determine why rather than forcing it. A bit of fused material might need gentle working free rather than aggressive force that could snap the part.
Support during posing: When arranging complex poses, support the print’s weight to avoid stressing joints. Hold the body while positioning limbs rather than letting weight hang on joints.
Dust accumulation: Articulated sections can trap dust in joint gaps. Compressed air works well for cleaning these areas without risking joint damage.
Material considerations: Most articulated prints use PLA for its detail and color range, but remember PLA’s heat sensitivity. Keep articulated displays away from heat sources that could soften joints.
Articulated Prints as Gifts
Flexi prints make exceptional gifts because they deliver immediate wow factor.
Universal Appeal
Articulated prints cross age and interest boundaries:
Non-collectors appreciate the technical achievement and interactive nature 3D printing enthusiasts recognize the engineering sophistication Fantasy fans love dragons and mythical creatures Animal lovers appreciate realistic creature designs Desk workers value fidget appeal and stress relief
The combination of visual appeal, interactive movement, and technical impressiveness creates gifts that consistently delight recipients.
Gift Presentation
Consider presentation approaches that highlight articulation:
Initial pose: Arrange the print in an eye-catching pose before gifting. First impression matters.
Movement demonstration: Include a note explaining that it’s poseable and encouraging experimentation with different positions.
Display suggestions: Mention that it can perch on monitor edges, wrap around objects, or arrange in various positions.
Care instructions: Brief notes about gentle movement and avoiding heat help recipients enjoy their gift long-term.
Designing Articulated Prints
For those interested in creating their own articulated designs, understanding the principles helps:
Software Requirements
Most articulated designs are created in CAD software with precise dimensional control:
Fusion 360: Parametric modeling makes it easy to define exact joint clearances and create variations by adjusting parameters.
Blender: While primarily an artistic tool, Blender can create articulated designs with careful dimensional control.
Tinkercad: Simple designs can be created in Tinkercad, though complex articulation benefits from more sophisticated tools.
Joint Design Process
Creating working joints requires iterative testing:
- Initial design: Create joint geometry with calculated clearances
- Test print: Print a small joint test piece
- Evaluate movement: Assess whether the joint is too tight, too loose, or just right
- Refine tolerances: Adjust clearances based on test results
- Full prototype: Print the complete design
- Multi-printer testing: Verify the design works across different printers
Successful articulated design requires patience and iteration. Even experienced designers rarely nail tolerances perfectly on the first attempt.
Printability Considerations
Beyond joint mechanics, consider overall printability:
Print orientation: The design should print in an orientation that minimizes support material while maintaining joint functionality.
Support structures: Some joints require support material, but it must be removable without damaging joint surfaces.
Structural integrity: Articulated designs can be fragile if too thin. Balance flexibility with adequate strength.
Assembly sequence: Consider print layer sequence to ensure parts print in an order that maintains gaps.
The Future of Articulated Printing
As printer technology improves, articulated design possibilities expand:
Finer tolerances: Better mechanical precision enables smaller, more delicate joints Multi-material printing: Combining rigid and flexible materials in single prints creates new movement possibilities Integrated mechanisms: More complex mechanical systems printing fully assembled Larger builds: Bigger build volumes enable larger articulated sculptures
The field continues evolving as designers push boundaries and printer capabilities advance.
Frequently Asked Questions
How do articulated 3D prints work?
Articulated prints feature carefully engineered gaps between moving parts. During printing, these tiny clearances (typically 0.2-0.5mm) are maintained through gravity, bridging, and precise layer timing. After printing, you flex the joints to separate any minor adhesion points, and the parts move freely.
Do articulated prints require assembly?
No. True print-in-place articulated designs print as single pieces with all joints functional. Some complex designs might have separately printed accessories, but the core articulated body prints fully assembled.
Can articulated prints break?
Like any 3D printed item, articulated prints can break if handled roughly. Joints are specifically engineered for movement within their design range, but forcing extreme positions or stressing joints while supporting the print’s weight incorrectly can cause damage. With reasonable care, articulated prints are quite durable.
What’s the best material for articulated prints?
PLA is most common because it produces the fine detail and dimensional accuracy that tight joint tolerances require. The material must be rigid enough to maintain joint integrity while allowing the precision needed for proper clearances.
Are articulated prints suitable for children?
While articulated prints aren’t designed as toys, older children who understand gentle handling can enjoy them. Very young children might be too rough on delicate joints. Consider the specific design’s robustness and the child’s age and care capability.
