Articulated 3D Printed Figurines: What Makes Them Special

Pick up a 3D printed dragon and twist its tail. Flex its wings. Pose its head at an angle. Set it down on your shelf in a stance that no other identical print will ever replicate. That is the magic of articulated 3D printed figurines — collectibles that move, flex, and pose right off the print bed, with no assembly required.

At 3DCentral, we carry over 1,400 articulated designs across our articulated figurines (952 designs) and articulated miniatures (472 designs) categories. This guide explains how they work, why they captivate collectors, and what to look for when choosing your next poseable print.

How Print-in-Place Articulation Works

The defining feature of articulated 3D printed figurines is print-in-place construction. The entire figure — body, limbs, joints, and all — is printed as a single piece in one continuous print session. There is no assembly, no glue, no screws. When the print finishes and you remove it from the build plate, the joints are already functional.

This works because designers leave calculated gaps between moving parts. During printing, each layer builds the joint components side by side with a thin air gap between them. Once complete, the parts are physically separate but mechanically interlocked — they can rotate or flex but cannot pull apart.

The precision required is remarkable. The gap must be large enough that the parts do not fuse together during printing, but small enough that the joint feels solid and intentional rather than loose and sloppy. Top designers have refined this balance through hundreds of iterations.

Types of Joints in Articulated Figurines

Ball-and-Socket Joints

The most common joint type in articulated figurines. A spherical ball on one segment sits inside a cup-shaped socket on the adjacent segment. This allows multi-directional movement — rotation, tilting, and combinations of both. Ball-and-socket joints appear most often in spine segments (allowing serpentine flex), neck connections, and hip/shoulder joints.

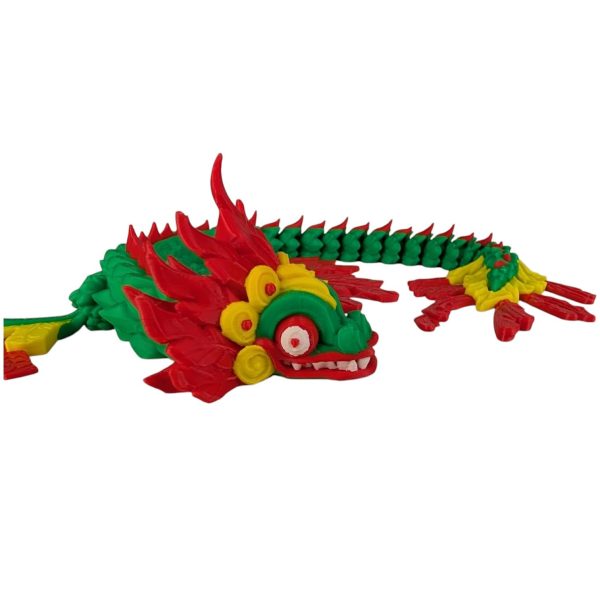

Dragons and serpents use chains of ball-and-socket joints along their entire body, creating the flowing, organic movement that makes these prints so appealing.

Pin Hinge Joints

Pin hinges allow movement in a single plane — like a door hinge. A cylindrical pin passes through aligned holes in two adjacent parts. These joints work well for jaws (open/close), wings (fold/extend), and legs (bend at knees and elbows).

Pin hinges produce satisfying, precise movement with clear limits of motion. They feel mechanical and intentional in a way that complements the organic feel of ball-and-socket spines.

Living Hinges

Rather than a discrete mechanical joint, a living hinge is a thin, flexible section of the print itself. The material is printed thin enough to bend without breaking. Living hinges appear in tails, antennae, and other elements where a smooth, continuous curve is desired rather than segmented articulation.

Living hinges require careful material selection — PLA works but has limited flex cycles. PETG and TPU handle repeated bending significantly better.

Snap-Fit Connections

Some designs use snap-fit joints where parts click together with an audible snap. These are common in modular figurines where limbs or accessories can be swapped between characters. The snap provides a secure hold while still allowing intentional removal.

Featured Artists and Their Articulated Designs

Flexi Factory

Flexi Factory is synonymous with print-in-place articulated designs. Their catalog spans animals, fantasy creatures, and character figurines, all engineered for smooth, reliable articulation. Flexi Factory designs are known for generous tolerances that print successfully on a wide range of printers, making them accessible even for collectors buying from print services rather than printing themselves.

Cinderwing3D

Cinderwing3D has earned a devoted following for their crystal dragon series and other fantasy creatures. Their articulated dragons feature intricate scale textures, dramatic wing spans, and spine articulation that allows dramatic, serpentine posing. Cinderwing3D designs tend to be more ornate and detail-rich than average, producing display pieces that function as miniature sculptures.

Other Notable Artists

Arbiter contributes articulated figures with a focus on character design and human-form articulation. TwistyPrints specializes in twist-action mechanisms — a variant where rotation rather than flexion produces the movement. These and other artists are featured in our artist spotlight.

What to Look for in Quality Articulated Prints

Not all articulated prints are created equal. Here is what separates a satisfying poseable figurine from a disappointing one:

Smooth joint movement. Joints should move freely without excessive force. If you have to pry segments apart to get them moving, the print tolerances were too tight or the print quality was insufficient. At 3DCentral, every articulated figure is tested for joint freedom before shipping.

Consistent tension. Joints should hold a pose without flopping under the weight of the figure. A dragon’s neck should stay where you position it, not droop downward. This comes from precise gap calibration by the designer and accurate printing by the manufacturer.

No visible stringing between joints. Stringing — thin filament threads between parts — is a common print artifact that can bind joints and detract from appearance. Professional printing with proper retraction settings eliminates this issue.

Clean segmentation. Each segment should be visually distinct, with clean edges where it meets the adjacent segment. Blurred or rough segment boundaries indicate under-calibrated print settings.

Structural integrity. The figure should withstand normal handling without joints loosening over time or thin sections snapping. This depends on both design (wall thickness, infill) and print quality (layer adhesion, temperature management).

Caring for Articulated Figurines

Articulated prints have a few specific care considerations beyond standard figurine care:

• Work joints gently at first. A new print may have micro-bridges between joint surfaces from the printing process. Gentle, gradual movement in the first few flex cycles breaks these free without stressing the joint.
• Avoid over-flexing. Each joint has a designed range of motion. Pushing beyond that range can crack the socket or deform the ball. If a joint resists, that is likely its limit.
• Dust the joints. Dust and debris can work into joint gaps over time, making movement gritty. Compressed air directed into joint gaps keeps them clean.
• Store in posed positions. Storing an articulated figure in an extreme pose for months can cause PLA to slowly creep (deform). Neutral, relaxed poses are best for long-term storage.

Why Collectors Love Articulated Figurines

The appeal is both tactile and visual. Articulated figurines invite interaction in a way that static prints do not. There is a fidget-toy quality to flexing a dragon’s spine or posing a figurine’s arms that makes these objects more engaging than a traditional statue.

For display, articulation means personalization. Two collectors can buy the same dragon design and display it in completely different poses. Your shelf arrangement becomes genuinely unique — not a copy of what everyone else has.

There is also the engineering appreciation factor. Knowing that a fully functional, multi-jointed figure was printed in a single session — no assembly — makes these objects feel like small marvels of design and manufacturing.

Browse our full selection of articulated figurines and articulated miniatures to find your next poseable collectible.

Frequently Asked Questions

Do articulated figurines require assembly?

No. All articulated figurines in our catalog use print-in-place technology — they are printed fully assembled with functional joints. You receive them ready to pose right out of the box.

What materials work best for articulated prints?

PLA produces the crispest joint detail and works well for display pieces that are posed occasionally. PETG offers better flexibility and durability for figurines that will be handled frequently. Material options are noted on each product page.

Will the joints wear out over time?

With normal handling, joints maintain their tension for years. Avoid forcing joints beyond their designed range of motion, and store figures in neutral poses for best longevity.

How big are articulated figurines?

Sizes range from miniature (under 8 cm) to large display pieces (30 cm or more). Articulated miniatures tend to run 5-12 cm, while full-size articulated figurines range from 12-30 cm. Check individual listings for exact dimensions.
